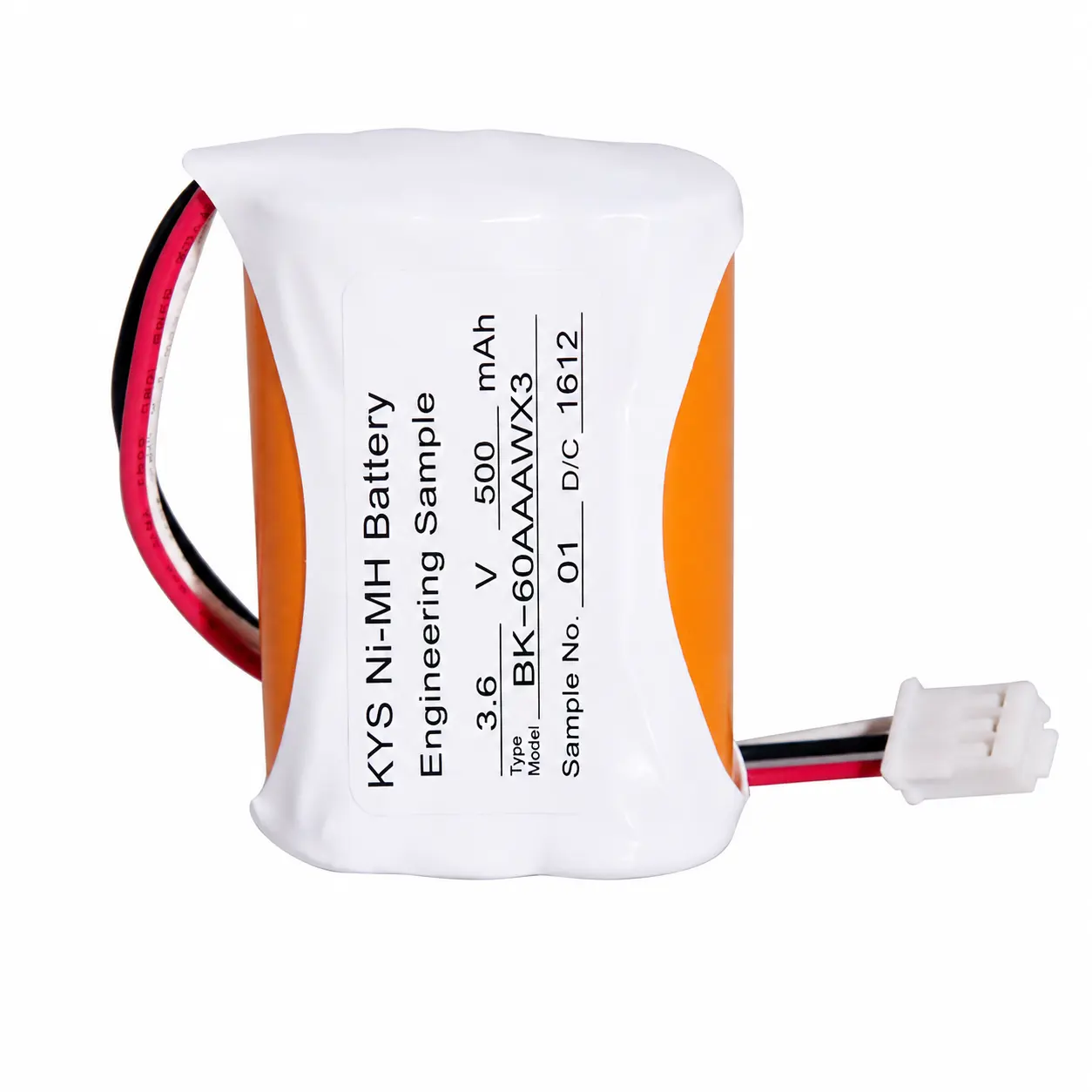

Casa / Bateria Ni-MH de 3,6V 500mAh de Alta Temperatura para Unidade de Computação de Veículos TBOX
3.6V 500mAh wide-temperature Ni-MH battery specially designed for TBOX vehicle computing units. It provides stable backup power for automotive electronics, GPS tracking, telematics, and communication systems, ensuring reliable performance in both high and low temperature environments.
What's in the Box
| Especificação | Details |
|---|---|
| Tensão nominal | 3.6V |
| Nominal Capacity | 500mAh |
| Tamanho da Bateria | 11 × 33 × 48 mm |
| Charging Temperature | -20°C to 60°C |
| Discharge Temperature | -20°C to 85°C |
Inquérito
Voltar para a Lista de Produtos
Visão geral
The 3.6V 500mAh Wide-Temperature Ni-MH Battery is specially designed for TBOX vehicle computing units, delivering stable and reliable power in harsh automotive environments. With excellent high and low temperature performance, this battery supports long service life, safe operation, and consistent energy output. Its compact design makes it ideal for automotive electronics, telematics systems, GPS tracking, and vehicle communication devices.
Multi-scenario Adaptation
Remote Control
Toy
Keyboard
Alarm Clock
Shaver
Water Heater
Gas Stove
Gas Meter
Parking Lock
Flashlight
Blood Pressure Monitor
Microphone
Detalhes do Produto
| Key Features | Details |
|---|---|
| Low-Temperature Discharge | Supports discharge from -20°C to 85°C |
| Low-Temperature Charging | Supports charging from -20°C to 60°C |
| Wide-Temperature Storage | Supports storage from -40°C to 85°C |
| Vida do ciclo | More than 1000 charge/discharge cycles |
Product Specification
| Detalhes do Produto | Especificações |
|---|---|
| Battery Specification | NI-MH AAA 500mAh 3.6V |
| Cell Model | NI-MH AAA 500mAh 1.2V |
| PTC | 260PTC |
| Protection Circuit | Without Protection Circuit |
| Tensão nominal | 3.6 V |
| Nominal Capacity | 500 mAh |
| Tamanho da Bateria | 11 × 33 × 48 mm |
| Resistência Interna | ≤ 180 mΩ |
| Battery Weight | 80 g |
| Charging Conditions | 50 mA × 16 hours / 250 mA × 2.4 hours |
| Continuous Discharge Current | 1.0 A |
| Protection Current | 5.2 A (260PTC) |
| Tensão de Carga | 4.5 V |
| Cut-off Discharge Voltage | 3.0 V |
| Vida do ciclo | ≥ 1000 cycles (0.5C charge / 1.0C discharge, remaining capacity ≥ 60%) |
| Charging Temperature | -20°C to 60°C |
| Discharge Temperature | -20°C to 85°C |
| Temperatura de armazenamento | -40°C to 85°C |
