Casa / 7,4V 2600mAh 2S1P 18650 Bateria de Íons de Lítio para sistemas de monitoramento de bomba de infusão, ciclo de vida de 1200

7,4V 2600mAh 2S1P 18650 Bateria de Íons de Lítio para sistemas de monitoramento de bomba de infusão, ciclo de vida de 1200

The 7.4V 2600mAh 2S1P 18650 lithium-ion battery pack delivers stable, rechargeable power for infusion pump monitoring systems and portable medical equipment. Designed for up to 1,200 cycles, it helps reduce replacement frequency and maintenance costs. Built-in protection supports safer operation, while customizable connectors, wiring, housings, and sensors ensure compatibility with different clinical and home healthcare applications in daily use worldwide.

Modelo: 18650-2S1P
Dimensões das células: 18× 65 mm
Tensão nominal: 7.4V
Corrente de descarga: 7.8 A
Capacidade: 2600 mAh
Resistência Interna: 80 mΩ
Aplicação: Infusion Pump Monitoring Systems
Tensão de Carga: 8.4 V

Obtenha uma cotação gratuita

Voltar para a Lista de Produtos

7,4V 2600mAh 2S1P 18650 bateria de íon-lítio para bombas de infusão

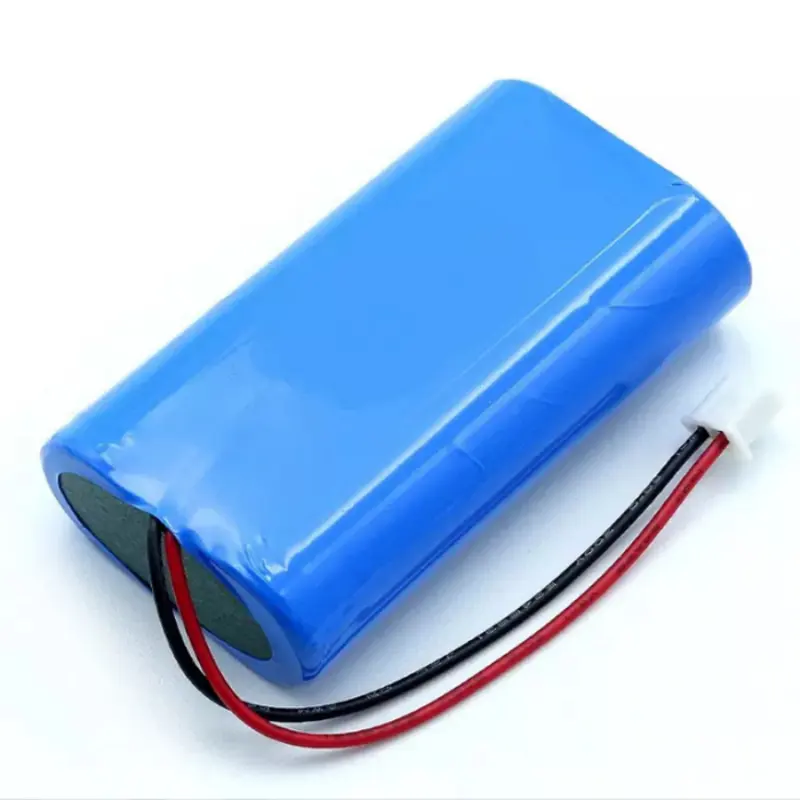

Rechargeable medical battery with 1200-cycle life for monitoring equipment

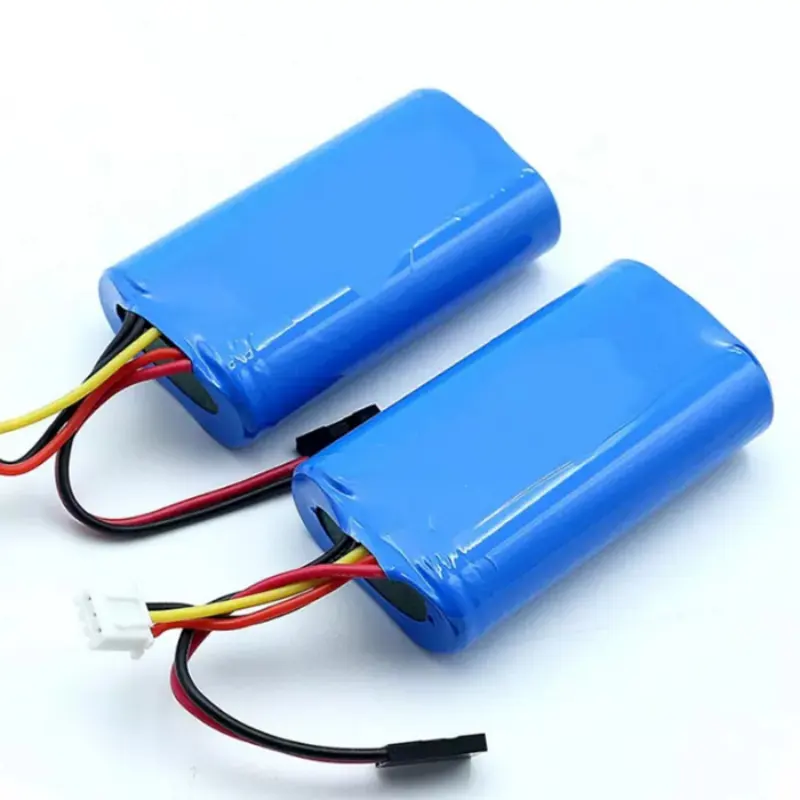

Compact 18650 battery pack for portable infusion pump systems

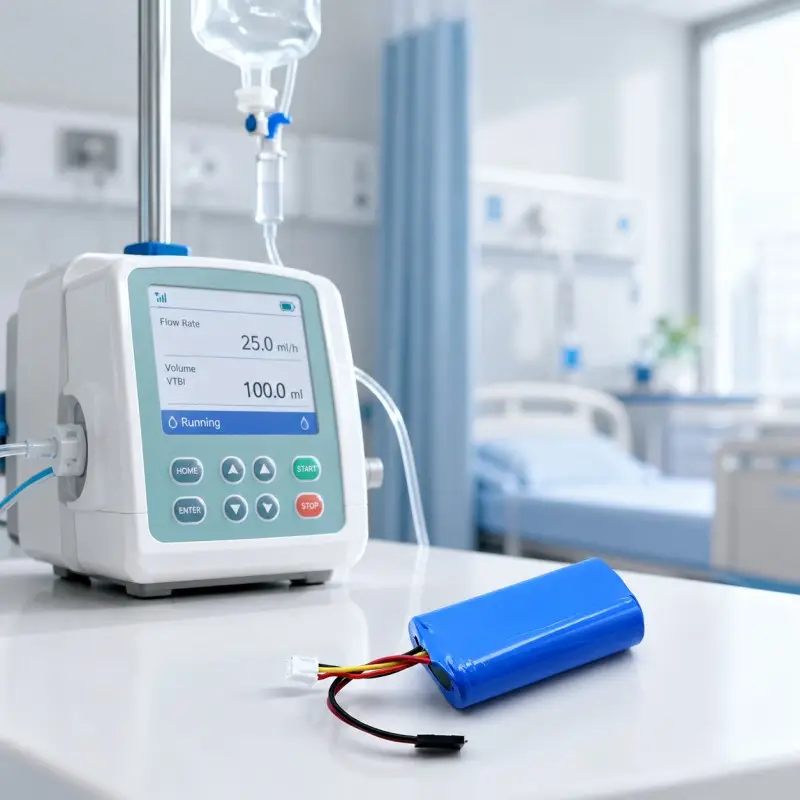

Bateria de reposição de longa duração para monitoramento de pacientes e equipamentos clínicos

Custom 7.4V lithium battery with protection circuit for medical devices

Visão geral

Detalhes do Produto

Parâmetros Técnicos

Contato

Produtos Relacionados

Visão geral

The 7.4V 2600mAh 2S1P 18650 lithium-ion battery pack is designed for infusion pump monitoring systems and other portable medical equipment requiring stable, rechargeable power. Built with two high-quality 18650 cells connected in series, it delivers a nominal voltage of 7.4V and dependable 2600mAh capacity for consistent operation. With a cycle life of up to 1,200 charges under suitable operating conditions, the pack helps reduce replacement frequency and long-term maintenance costs. An integrated protection circuit helps protect against overcharging, over-discharging, overcurrent, and short circuits, supporting safer use in clinical environments. The battery can be customized with specific connectors, wire lengths, housings, temperature sensors, and communication functions to match different infusion pump designs. Compact construction, reliable discharge performance, and OEM/ODM flexibility make this battery pack suitable for hospitals, clinics, ambulances, and home healthcare applications where uninterrupted monitoring and mobility are essential. It also supports customized labeling, packaging, and validation requirements for manufacturers.

Detalhes do Produto

7.4V 2600mAh Output: Provides stable rechargeable power for infusion pumps, monitoring systems, and portable medical equipment.

2S1P Configuration: Two 18650 lithium-ion cells are connected in series to achieve a compact and reliable 7.4V battery system.

Long Cycle Life: Supports up to 1,200 charge and discharge cycles under appropriate charging, temperature, and operating conditions.

Proteção Integrada: Built-in protection helps prevent overcharging, over-discharging, overcurrent, and short circuits.

Compact and Lightweight: The space-saving structure is suitable for installation inside portable medical devices.

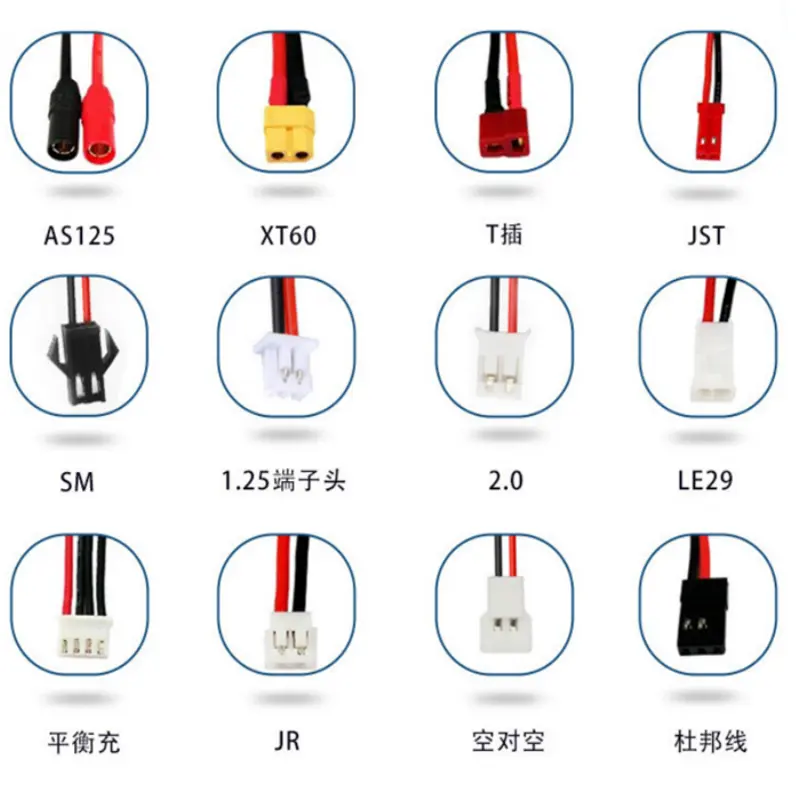

Customizable Design: Connectors, wire lengths, battery housing, BMS, temperature sensors, labels, and packaging can be customized.

Reliable Performance: Delivers consistent power for continuous monitoring and mobile clinical use.

Áreas de Aplicação

Bombas de infusão
Bombas de seringa
Sistemas de monitoramento de infusão
Monitores portáteis para pacientes
Equipamento médico de diagnóstico
Dispositivos médicos de emergência
Equipamentos de cuidados domiciliares
Instrumentos clínicos portáteis

Parâmetros Técnicos

Modelo	18650-2S1P
Tamanho da Célula	18 × 65mm
Corrente de descarga	7.8 A
Tensão nominal	7,4V
Capacidade	2600 mAh
Resistência Interna	80 mΩ
Método de Processamento	Personalizado conforme necessário
Aplicação	Infusion Pump Monitoring Systems
Tensão de Carga	8,4V
