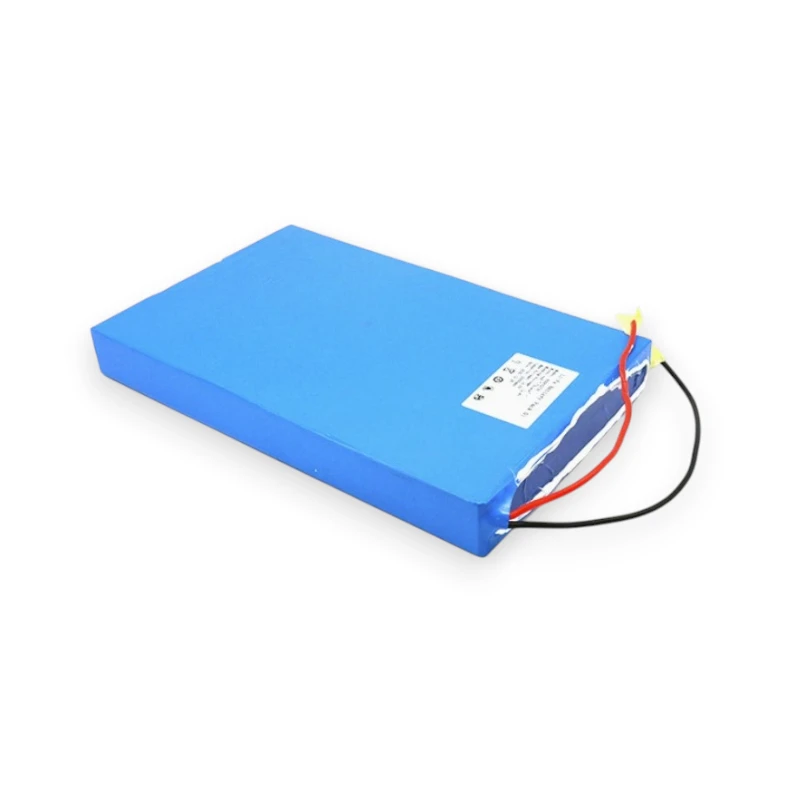

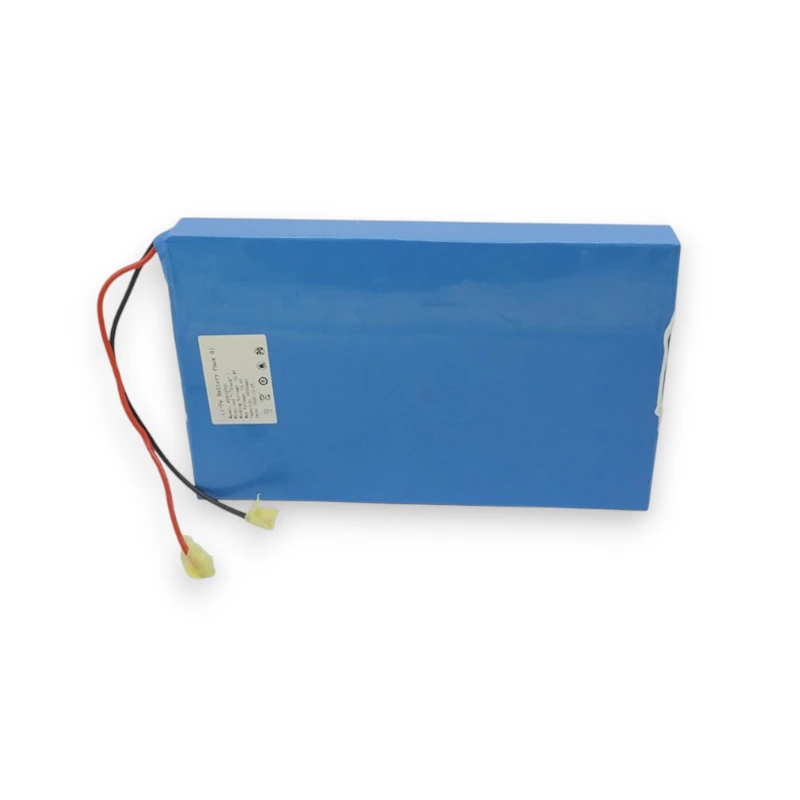

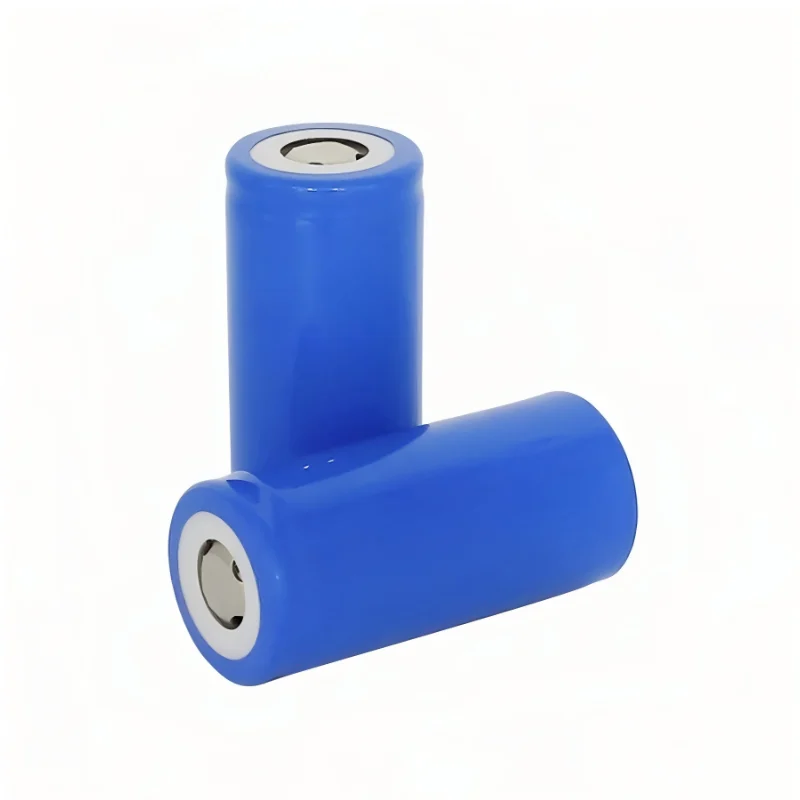

Our KYS 32700 series covers both single LiFePO4 cell and pre‑assembled 4S8P battery pack for flexible power use. The single 6500mAh 3.2V Grade‑A cell supports 5C high‑rate discharge with MSDS certification, great for DIY assembly. The 12.8V 52Ah 4S8P pack with BMS & wires is ready‑to‑use, certified by CB, CE, SGS, UN38.3, UL, perfect for energy storage and backup power supplies.
- Marca do Produto: KYS
- Product Model: 32700 4S8P with BMS & Wires
- Product Capacity: 52 Ah
- Tensão nominal: 12,8 V
- Finished Size: 75*135*270 mm
- Temperatura de armazenamento: 23±3°C
- Temperatura de operação: -10°C ~ 50°C
Obtenha uma cotação gratuita
Voltar para a Lista de Produtos
Visão geral
The Gloflux Cylindrical Lithium Battery Cell is engineered to deliver stable energy output and long service life for modern electronic applications. It is designed to support modular battery design, allowing flexible configuration of energy systems across different voltage and capacity requirements. This structure helps developers build efficient and scalable battery packs with ease.
Modular Battery Design Flexibility
The modular battery design allows cells to be combined in different arrangements. As a result, system designers can adjust performance based on specific application needs. In addition, this flexibility reduces development complexity and improves integration efficiency. Therefore, it becomes easier to create customized battery packs for a wide range of devices.
Stable Cylindrical Cell Performance
The cylindrical lithium cell provides consistent discharge performance and high energy density. Moreover, it maintains stable output even under continuous load conditions. The robust structure also improves mechanical durability. Consequently, the cell performs well in both consumer and industrial environments where reliability is critical.
Safety and Quality Control
Each cell is built under strict quality standards to ensure safe operation. In addition, the internal chemistry is optimized to reduce performance degradation over time. When used in a modular battery design system, the cells work efficiently with battery management systems. Therefore, overall safety and stability are significantly improved.
Scalable Energy Integration
The cylindrical structure supports easy expansion of energy capacity. For example, additional cells can be added to increase voltage or runtime. At the same time, system balance remains stable when proper management is applied. This makes the product suitable for scalable energy projects in many industries.
Cenários de Aplicação Ampla
The battery cell fits well in portable electronics, medical devices, smart systems, and industrial tools. Furthermore, it supports long-term use in energy storage applications. Because of its modular battery design compatibility, it adapts easily to different engineering requirements. As a result, it provides a reliable foundation for flexible power system development.
Parâmetros Técnicos
| Item | Especificação |
| Battery Brand | BEIJO |
| Battery Model | 32700 |
| Capacidade da Bateria | 6500mAh |
| Tensão nominal | 3,2V |
| Peso da Bateria | 137g |
| Battery Internal Resistance | 14-16mΩ |
| Cell Grade | Brand-new Grade A |
| Taxa de descarga | 5C |
| Battery Length | 70mm |
| Battery Diameter | 32mm |
| Full-charged Voltage | 4,2V |
| Temperatura de Operação | Charge (0-45℃), Discharge (-20-60℃) |
| Certificação | MSDS |
| Item | Especificação |
| Marca do Produto | BEIJO |
| Modelo do Produto | 32700 4S8P with BMS & Wires |
| Capacidade do Produto | 52Ah |
| Tensão nominal | 12,8V |
| Tamanho Finalizado | 75*135*270mm |
| Temperatura de armazenamento | 23±3°C |
| Temperatura de Operação | -10°C ~ 50°C |
| Certificação | CB, CE, SGS, UN38.3, UL |
