Bateria de Bolsa de Polímero de Lítio 111640

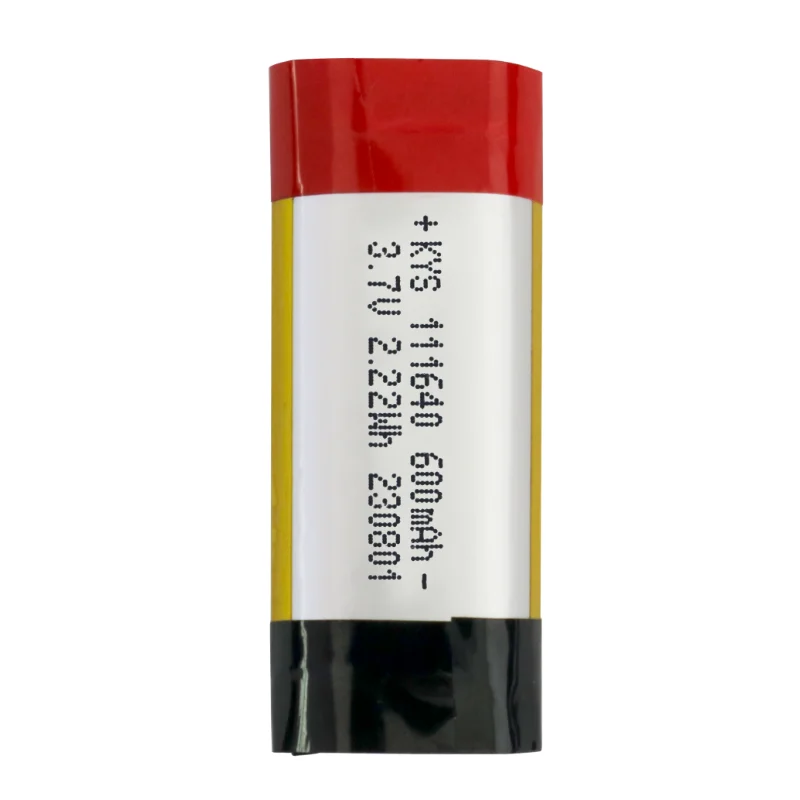

Lithium Polymer Pouch Battery Structure Description

Manufacturers construct the lithium polymer pouch battery with tabs on opposite ends by stacking electrode layers inside an aluminum-plastic pouch. First, they align cathode and anode sheets in a precise staggered layout, and they insert a microporous separator between them to maintain electrical isolation. Then, engineers extend current collector tabs toward opposite directions, and they fix the alignment during the stacking process. After that, workers place the completed electrode assembly into the pouch casing and adjust its position carefully before sealing preparation begins.

Material Composition and Layer Design

Producers coat lithium metal oxide materials onto aluminum foil to form the cathode layer, and they apply graphite-based slurry onto copper foil to create the anode layer. Meanwhile, they introduce a polyethylene and polypropylene multilayer separator to support ion transport while blocking internal contact. In addition, they select aluminum-plastic composite film as the outer enclosure material, and this structure combines barrier protection with mechanical flexibility. Next, technicians inject lithium salt electrolyte dissolved in organic carbonate solvents, and they ensure uniform penetration across all electrode surfaces.

Electrode Tab Configuration and Connection Method

Engineers position aluminum cathode tabs and copper or nickel-coated anode tabs at opposite ends of the cell. Then, they weld the tabs to the current collectors using ultrasonic or resistance welding equipment. At the same time, they reinforce the tab exit area with insulation materials to prevent edge shorting. After welding, operators route the tabs out of the pouch carefully, and they verify alignment to avoid stress on internal layers before sealing.

Standards and Manufacturing Control System

Quality teams follow IEC 62133 and UN38.3 standards throughout production. They inspect dimensions, test weld strength, and measure insulation resistance at multiple stages. In addition, they grade capacity and match internal resistance to maintain batch consistency. Finally, they run vibration, thermal shock, and high-temperature storage tests, and they verify that each cell meets required safety and manufacturing specifications.

Características do Produto

1. 🛠️ Personalizável
   Personalizável para atender às necessidades do cliente
2. ⚡ Alta Potência
   Taxa máxima de descarga de 20°C disponível
3. ⏱️ Ciclo de Vida Longo
   Atende às necessidades de uso de longo prazo do produto
4. 🛡️ Alta Segurança
   Passou em testes de segurança abrangentes
5. 🔋 Capacidade Nominal Real
   Corresponde à capacidade de design do produto
6. ⚛️ Opções Multi-Químicas
   Abrange sistemas LCO, NCM, NCA e LFP
7. 🧰 Mecanismo de Múltiplas Proteções
   Placa de proteção embutida com proteção contra sobrecarga, sobredescarga, sobrecorrente e curto-circuito

Áreas de Aplicação do Produto

Este produto é adequado para uma variedade de dispositivos eletrônicos portáteis e motorizados, com aplicações típicas incluindo:

• Cuidados Pessoais e Saúde: Escovas de dentes elétricas, dispositivos de beleza, rastreadores de fitness, dispositivos médicos

• Digital e Áudio Inteligentes: Fones de Ouvido, Alto-Falantes, Nebulizadores, Brinquedos, Luzes

• Pagamento Financeiro e Escritório: Máquinas POS, Tokens USB, Impressoras Portáteis
